GT15 Series HMI
The GT15 Series GOT is Mitsubishis advanced GOT. Models in this range offer many of the features found in the GT16 Series. Ideal for many standalone or networked solutions, the GT15 delivers visualization for machine, factory and enterprise level applications. Designed to meet the rigors of todays factory, the GT15 Series is a HMI workhorse and well suited for demanding applications and environments alike. Terminals in this range are available in color or monochrome TFT or STN display and range in size from 5.7 inch to 15 inch. Common hardware features for the GT15 include an enhanced CPU and graphics engine, integrated communication ports (RS232) and power supply, front mounted USB ports, compact flash slots, and 9MB flash memory built-in.
Model Number |
Screen Size (Resolution) |
Display |
Display Colors (Number of Colors) |
Power Supply |
Memory Size |
Remarks |
Stk. Item |
GT16 |
GT1695 |
GT1695M-XTBA |
15" 1024 x 768 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
15MB |
- |
S |
GT1695M-XTBD |
24VDC |
S |
GT1685 |
GT1685M-STBA |
12.1" 800 x 600 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
S |
GT1685M-STBD |
24VDC |
S |
GT1675 |
GT1675M-STBA |
10.4" 800 x 600 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
- |
S |
GT1675M-STBD |
24VDC |
S |
GT1675M-VTBA |
10.4" 640 x 480 dots |
100-240VAC |
S |
GT1675M-VTBD |
24VDC |
S |
GT1665 |
GT1665M-STBA |
8.4" 800 x 600 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
- |
S |
GT1665M-STBD |
24VDC |
S |
GT1665M-VTBA |
8.4" 640 x 480 dots |
100-240VAC |
S |
GT1665M-VTBD |
24VDC |
S |
GT15 |
GT1595 |
GT1595-XTBA |
15" XGA 1024 x 768 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
9MB |
- |
S |
GT1595-XTBD |
24VDC |
- |
GT1585 |
GT1585V-STBA |
12.1" SVGA 800 x 600 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
9MB |
Applicable for Video/RGB |
S |
GT1585V-STBD |
24VDC |
- |
GT1585-STBA |
TFT color LCD (high brightness, wide viewing angle) |
100-240VAC |
- |
S |
GT1585-STBD |
24VDC |
S |
GT157_ |
GT1575V-STBA |
10.4" SVGA 800 x 600 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
9MB |
Applicable for Video/RGB |
S |
GT1575V-STBD |
24VDC |
- |
GT1575-STBA |
TFT color LCD (high brightness, wide viewing angle) |
100-240VAC |
- |
S |
GT1575-STBD |
24VDC |
S |
GT1575-VTBA |
10.4" VGA 640 x 480 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
9MB |
S |
GT1575-VTBD |
24VDC |
S |
GT1575-VNBA |
TFT color LCD |
256 colors |
100-240VAC |
5MB |
S |
GT1575-VNBD |
24VDC |
S |
GT1572-VNBA |
TFT color LCD |
16 colors |
100-240VAC |
5MB |
S |
GT1572-VNBD |
24VDC |
S |
GT156_ |
GT1565-VTBA |
8.4" VGA 640 x 480 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
100-240VAC |
9MB |
- |
S |
GT1565-VTBD |
24VDC |
S |
GT1562-VNBA |
TFT color LCD |
16 colors |
100-240VAC |
5MB |
S |
GT1562-VNBD |
24VDC |
S |
GT155_ |
GT1555-VTBD |
5.7" VGA 640 x 480 dots |
TFT color LCD (high brightness, wide viewing angle) |
65,536 colors |
24VDC |
9MB |
- |
S |
GT1555-QTBD |
5.7" QVGA 320 x 240 dots |
- |
GT1555-QSBD |
STN color LCD |
4,096 colors |
S |
GT1550-QLBD |
STN monochrome LCD |
Mono. (b/w) 16 gray scales |
S |
GT16 Performance Specifications
Model Number |
GT1695M-XTBA GT1695M-XTBD |
GT1685M-STBA GT1685M-STBD |
GT1675M-STBA GT1675M-STBD |
GT1675M-VTBA GT1675M-VTBD |
GT1665M-STBA GT1665M-STBD |
GT1665M-VTBA GT1665M-VTBD |
Display |
Type |
TFT color LCD (high-brightness, wide viewing angle) |
Screen Size |
15" |
12.1" |
10.4" |
8.4" |
Resolution (Dots) |
1024 x 768 |
800 x 600 |
800 x 600 |
640 x 480 |
800 x 600 |
640 x 480 |
Display Size (W x H) mm |
304.1x 228.1 |
246 x 184.5 |
211 x 158 |
171 x 128 |
Number of Displayed Characters |
16-dot standard font: 64 chars. x 48 lines (2-byte); 12-dot standard font: 85 chars. x 64 lines (2-byte) |
16-dot standard font: 50 chars. x 37 lines (2-byte); 12-dot standard font: 66 chars. x 50 lines (2-byte) |
16-dot standard font: 40 chars. x 30 lines (2-byte); 12-dot standard font: 53 chars. x 40 lines (2-byte) |
16-dot standard font: 50 chars. x 37 lines (2-byte); 12-dot standard font: 66 chars. x 50 lines (2-byte) |
16-dot standard font: 40 chars. x 30 lines (2-byte); 12-dot standard font: 53 chars. x 40 lines (2-byte) |
Display Colors |
65,536 |
View Angle (*5) |
Right/left: 75°, Up: 50°, Down: 60° |
Right/left: 80°, Up: 60°, Down: 80° |
88° |
Right/left: 80°, Up: 80°, Down: 80° |
Intensity (cd/m²) |
450 |
470 |
400 |
450 |
400 |
600 |
Intensity Adjustment |
8-step adjustment |
Life |
Approx. 52,000 hours (operating ambient temperature: 25°C) |
Approx. 43,000 hours (operating ambient temperature: 25°C) |
Backlight |
Backlight |
Cold-cathode fluorescent tube (replaceable), with backlight OFF detection function. Backlight off time and screen save time can be set. |
Life (*1) |
Approx. 50,000 hours or more (Time for display intensity reaches 50% at operating ambient temperature of 25°C) |
Touch Panel |
Type |
Analog resistive type |
Key Size (Dots) |
Min. 2 x 2 (per key) |
No. of Simultaneous Touch Pts. |
Simultaneous touch prohibited (*2) (1 point only) |
Life |
1,000,000 times or more (operating force 0.98N or less) |
Human Sensor |
Detection Distance (m) |
1 |
Detection Range |
Right/left/up/down: 70° |
Detection Delay Time (Sec) |
0 to 4 |
Detection Temperature |
Temperature difference between human body and ambient air: 4°C or higher |
Memory (*3) |
C Drive |
15MB built-in flash memory (for saving project data, extended function OS/optional function OS) |
Life (No. Of Writings) |
100,000 times |
Battery |
Battery |
GT15-BAT type lithium battery (optional) |
Backed Up Data |
Clock data and maintenance time notification data, system log data |
Life |
Approx. 5 years (operating ambient temperature: 25°C) |
Built-in Interface |
RS-232 |
RS-232, 1ch. Transmission speed: 115200/57600/38400/19200/9600/4800 bps; Connector shape: D-sub 9-pin (male); Application: Communication with connected devices, connection to personal computer (project data upload/download, OS installation, FA transparent function) |
RS-422/485 |
RS-422/485, 1ch. Transmission speed: 115200/57600/38400/19200/9600/4800 bps; Connector shape: 14-pin (female); Application: Communication with a controller |
Ethernet |
Data transfer method: 100BASE-TX, 1 ch.; Connector shape: RJ-45 (modular jack); Application: Communication with a controller, using the gateway function, or connection to personal computer (project data upload/download, OS installation, MES interface function) |
USB |
USB (full speed: 12 Mbps), host 1ch. Connector shape: TYPE-AApplication: Data transfer, data storage |
USB (full speed: 12 Mbps), device 1ch. Connector shape: TYPE Mini-B; Application: Connection to personal computer (project data upload/download, OS installation, FA transparent function) |
CF Card |
Compact flash slot, 1ch. Connector shape: TYPE I Application: Data transfer and storage, GOT start-up |
Optional Function Board |
1ch for optional function board installation |
Extension Unit |
2ch for communication unit/optional unit installation |
Buzzer Output |
Single tone (tone length adjustable) |
Protective Construction |
Outside the enclosure: IP67 Inside the enclosure: IP2X |

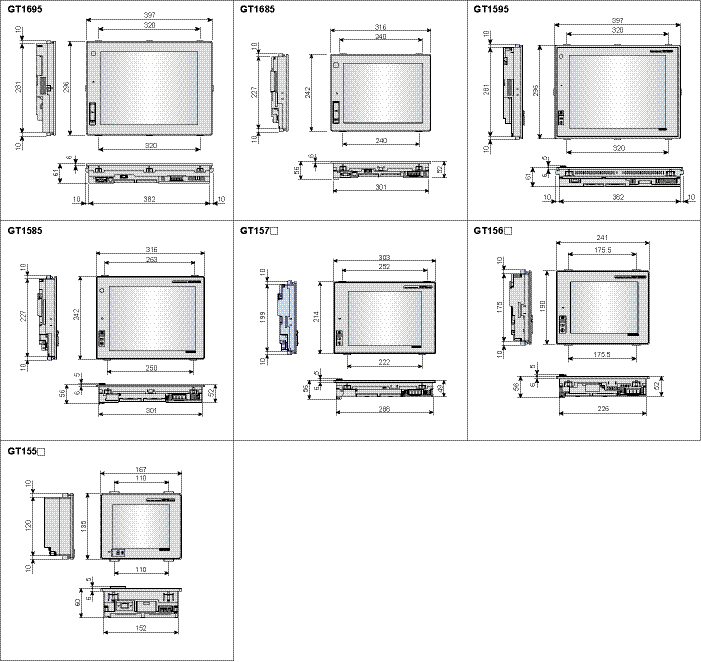

External Dimensions (Without USB Port Cover) (W x H x D) mm |
397 x 296 x 61 |
316 x 242 x 52 |
303 x 214 x 49 |
241 x 90 x 52 |
Panel Cut Dimensions (W x H) mm |
383.5 x 282.5 |
302 x 228 |
289 x 200 |
227 x 176 |
Weight (Excluding Mounting Brackets) (kg) |
5.0 |
2.7 |
2.1 |
1.7 |
Application Software Package |
GT Designer2 Version 2.93U or later |
Notes:
- Using the GOT screen save/backlight OFF functions prevents screen burn-in and extends the backlight life.
- An analog resistive touch display is used. When 2 points son the screen are touched simultaneously, if a switch is located at the middle of the 2 points then the switch will be activated. Therefore, avoid touching 2 points on the screen simultaneously.
- The built-in memory is a ROM that permits overwriting of new data without having to delete the existing data.
GT16 Power Supply Specifications
Model Number |
GT1695M-XTBA |
GT1685M-STBA |
GT1675M-STBA GT1675M-VTBA GT1665M-STBA GT1665M-VTBA |
GT1695M-XTBD |
GT1685M-STBD |
GT1675M-STBD GT1675M-VTBD GT1665M-STBD GT1665M-VTBD |
Input Power Supply Voltage |
100 to 240VAC (+10%, -15%) |
24VDC (+25%, -20%) |
Input Frequency |
50/60Hz ±5% |
- |
Input Maximum Voltampere |
150VA (at max. load) |
110VA (at max. load) |
100VA (at max. load) |
- |
Power Consumption |
64W or less |
46W or less |
39W or less |
60W or less |
40W or less |
38W or less |
Power Consumption W/ Backlight Off |
38W or less |
32W or less |
30W or less |
30W or less |
26W or less |
27W or less |
Inrush Current |
28A or less (4ms, at max. load) |
12A or less (75ms, at max. load) |
12A or less (55ms, at max. load) |
Permissible Instant. Failure Time |
Within 20ms (100VAC or more) |
Within 10ms |
Noise Resistance |
Noise width 1µs, and noise frequency 25 to 60Hz, by noise simulator with noise voltage 1500Vp-p |
Noise width 1µs, and noise frequency 25 to 60Hz, by noise simulator with noise voltage 500Vp-p |
Withstand Voltage |
1500VAC for 1 minute between power supply terminal and ground for 1 minute |
Insulation Resistance |
10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground) |
Applicable Wire Size |
0.75 to 2 [mm²] |
Clamp Terminal |
Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A |
Tightening Torque (Terminal Block’s Terminal Screws) |
0.5 to 0.8 [N·m] |
GT15 Performance Specifications
Model Number |
GT1595-XTBA GT1595-XTBD |
GT1585V-STBA GT1585V-STBD GT1585-STBA GT1585-STBD |
GT1575V-STBA GT1575V-STBD GT1575-STBA GT1575-STBD |
GT1575-VTBA GT1575-VTBD |
GT1575-VNBA GT1575-VNBD |
GT1572-VNBA GT1572-VNBD |
GT1565-VTBA GT1565-VTBD |
GT1562-VNBA GT1562-VNBD |
Display |
Type |
TFT color LCD (high-brightness, wide viewing angle) |
TFT color LCD |
TFT color LCD (high-brightness, wide viewing angle) |
TFT color LCD |
Screen Size |
15" |
12.1" |
10.4" |
8.4" |
Resolution (Dots) |
XGA: 1024 x 768 |
SVGA: 800 x 600 |
VGA: 640 x 480 |
Display Size (W x H) mm |
304.1x 228.1 |
246 x 184.5 |
211 x 158 |
171 x 128 |
Number of Displayed Characters |
16-dot standard font: 64 chars. x 48 lines (2-byte) 12-dot standard font: 85 chars. x 64 lines (2-byte) |
16-dot standard font: 50 chars. x 37 lines (2-byte); 12-dot standard font: 66 chars. x 50 lines (2-byte) |
16-dot standard font: 40 chars. x 30 lines (2-byte); 12-dot standard font: 53 chars. x 40 lines (2-byte) |
Display Colors |
65,536 |
256 |
16 |
65,536 |
16 |
View Angle (*5) |
Right/left: 75°, Up: 50°, Down: 60° |
Right/left: 60°, Up: 40°, Down: 50° |
Right/left/up/down: 85° |
Right/left/up/down: 85° |
Right/left: 45°, Up: 30°, Down: 20° |
Right/left: 65°, Up: 50°, Down: 60° |
Right/left: 45°, Up: 20°, Down: 20° |
Contrast Adjustment |
- |
Intensity (cd/m² ) |
450 |
350 |
400 |
380 |
200 |
380 |
150 |
Intensity Adjustment |
8-step adjustment |
4-step adjustment |
8-step adjustment |
4-step adjustment |
Life |
Approx. 52,000 hours (operating ambient temperature: 25°C) |
Approx. 50,000 hours (operating ambient temperature: 25°C) |
Approx. 41,000 hours (operating ambient temperature: 25°C) |
Backlight |
Backlight |
Cold-cathode fluorescent tube (replaceable), with backlight OFF detection function. Backlight off time and screen save time can be set. |
Life (*1) |
Approx. 50,000 hours or more |
Approx. 40,000 hours or more |
(Time for display intensity reaches 50% at operating ambient temperature of 25°C) |
Touch Panel |
Type |
Analog resistive type |
Matrix resistive type |
Number of Touch Keys |
3072 keys/screen (48 lines x 64 columns) |
1900 keys/screen (38 lines x 50 columns) |
1200 keys/screen (30 lines x 40 columns) |
Key Size (Dots) |
Min. 2 x 2 (per key) |
Min. 16 x 16 (per key) (16 x 8 only on lowermost line) touch keys |
Min. 16 x 16 (per key) |
No. Of Simultaneous Touch Points |
Simultaneous touch prohibited (*2) (1 point only) |
Max. 2 points |
Life |
1,000,000 times or more (operating force 0.98N or less) |
Human Sensor |
Detection Distance (m) |
1 |
- |
Detection Range |
Right/left/up/down: 70° |
- |
Detection Delay Time (Sec) |
0 to 4 |
- |
Memory (*3) |
C Drive |
9MB built-in flash memory (for saving project data, extended function OS/optional function OS) |
5MB built-in flash memory CF card (for saving project data, extended function OS/optional function OS) C drive |
9MB built-in flash memory (for saving project data, extended function OS/optional function OS) |
5MB built-in flash memory (for saving project data, extended function OS/optional function OS) |
Life (No. Of Writings) |
100,000 times |
Battery |
Battery |
GT15-BAT type lithium battery (optional) |
Backed Up Data |
Clock data and maintenance time notification data |
Life |
Approx. 5 years (operating ambient temperature: 25°C) |
Built-in Interface |
RS-232 |
RS-232, 1ch. Transmission speed: 115200/57600/38400/19200/9600/4800 bps, Connector shape: D-sub 9-pin (male); Application: Communication with connected devices, connection to personal computer (project data upload/download, OS installation, FA transparent function) |
USB |
USB (full speed: 12 Mbps), device 1ch. Application: Connection to personal computer (project data upload/download, OS installation, FA transparent function) |
CF Card |
Compact flash slot, 1ch. Connector shape: TYPE I: Application: Data transfer and storage |
Optional Function Board |
1ch for optional function board installation |
Extension Unit |
2ch for communication unit/optional unit installation |
Buzzer Output |
Single tone (tone length adjustable) |
Protective Construction |
JEM1030 Front: IP67f. In panel: IP2X (*4) |
External Dimensions (Without USB Port Cover) (W x H x D) mm |
397 x 296 x 61 |
316 x 242 x 52 |
303 x 214 x 49 |
241 x 192 x 52 |
Panel Cut Dimensions (W x H) mm |
383.5 x 282.5 |
302 x 228 |
289 x 200 |
227 x 176 |
Weight (Excluding Mounting Brackets) (kg) |
4.9 |
2.8 |
GT1575V:2.3 GT1575:2.4 |
2.4 |
2.3 |
1.9 |
Applic. Software Package |
Screen Design Software |
GT Designer2 Version 2.58L or later |
Simulation Software |
GT Simulator2 Version 2.58L or later |
Notes:
- Using the GOT screen save/backlight OFF functions prevents screen burn-in and extends the backlight life.
- An analog resistive touch display is used. When 2 points son the screen are touched simultaneously, if a switch is located at the middle of the 2 points then the switch will be activated. Therefore, avoid touching 2 points on the screen simultaneously.
- The built-in memory is a ROM that permits overwriting of new data without having to delete the existing data.
- Conforms to the IP67f (JEM1030) standard when the USB port cover is installed. (The USB interface conforms to IP2X (JEM1030) when a USB cable is connected.) However, this does not guarantee protection in all users’ environments.
- LC panels have characteristics of tone reversal. Note that even within the indicated view angles, the screen display may not be clear enough depending on the display color.
- The GT1555-VTBD can be operated with a stylus pen. Using a stylus pen enables touching small switches without fault. Use a stylus pen within the following specifications; Material: polyacetal resin, Point tip: 0.8m or more.
GT15 Power Supply Specifications
Model Number |
GT1595-XTBA |
GT1585V-STBA GT1585-STBA |
GT1575-STBA GT1575-VTBA GT1575-VNBA GT1572-VNBA GT1565-VTBA GT1562-VNBA |
GT1595-XTBD |
GT1585V-STBD GT1585-STBD |
GT1575V-STBD GT1575-STBD GT1575-VTBD GT1575-VNBD GT1572-VNBD GT1565-VTBD GT1562-VNBD |
GT1555-VTBD |
GT1555-QTBD |
GT1555-QSBD |
GT1550-QLBD |
Input Power Supply Voltage |
100 to 240VAC (+10%, -15%) |
24VDC (+25%, -20%) |
Input Frequency |
50/60Hz ±5% |
- |
Input Maximum Voltampere |
110VA (at max. load) |
- |
Power Consumption |
With Backlight Off |
56W or less |
41W or less |
39W or less |
57W or less (2380mA/24VDC) |
43W or less (1790mA/24VDC) |
41W or less (1710mA/24VDC) |
19W or less (790mA/24VDC) |
18W or less (750mA/24VDC) |
17W or less (710mA/24VDC) |
15W or less (620mA/24VDC) |
30W or less |
28W or less |
28W or less |
32W or less (1330mA/24VDC) |
30W or less (1250mA/24VDC) |
30W or less (1250mA/24VDC) |
14W or less (580mA/24VDC) |
13W or less (540mA/24VDC) |
Inrush Current |
50A or less (4ms, at max. load) |
45A or less (4ms, at max. load) |
40A or less (4ms, at max. load) |
100A or less (4ms, at max. load) |
115A or less (1ms, at max. load) |
115A or less (1ms, at max. load) |
67A or less (1ms, at max. load) |
60A or less (1ms, at max. load) |
Permissible Instantaneous Failure Time |
Within 20ms (100VAC or more) |
Within 10ms |
Noise Resistance |
Noise width 1µs, and noise frequency 25 to 60Hz, by noise simulator with noise voltage1500Vp-p |
Noise width 1µs, and noise frequency 25 to 60Hz, by noise simulator with noise voltage 500Vp-p |
Withstand Voltage |
1500VAC for 1 minute between power supply terminal and ground for 1 minute |
500VAC for 1 minute between power supply terminal and ground for 1 minute |
Insulation Resistance |
10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground) |
Applicable Wire Size |
0.75 to 2 [mm²] |
Clamp Terminal |
Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3AS |
Tightening Torque (Terminal Block’s Terminal Screws) |
0.5 to 0.8 [N·m] |
Dimensional Diagrams
GT16 • GT15 • GT12 Base Units
Screen Size |
GOT Type |
A |
B |
15" |
GT1695 GT1595 |
383.5 |
282.5 |
12.1 |
GT1685 GT1585 (*1) |
302 |
228 |
10.4 |
GT157_ (*2)
GT127_ |
289 |
200 |
8.4 |
GT156_
GT126_ |
227 |
176 |
5.7 |
GT155_ (*3) GT115_ (*3) GT105_ |
153 |
121 |
4.7 |
GT1040 |
130 |
103 |
4.5 |
GT1030 |
137 |
66 |
3.7 |
Screen Size |
GOT Type |
A |
B |
15" |
GT1695 GT1595 |
383.5 |
282.5 |
12.1 |
GT1685 GT1585 (*1) |
302 |
228 |
10.4 |
GT157_ (*2)
GT127_ |
289 |
200 |
8.4 |
GT156_
GT126_ |
227 |
176 |
5.7 |
GT155_ (*3) GT115_ (*3) GT105_ |
153 |
121 |
4.7 |
GT1040 |
130 |
103 |
4.5 |
GT1030 |
137 |
66 |
3.7 |
|
